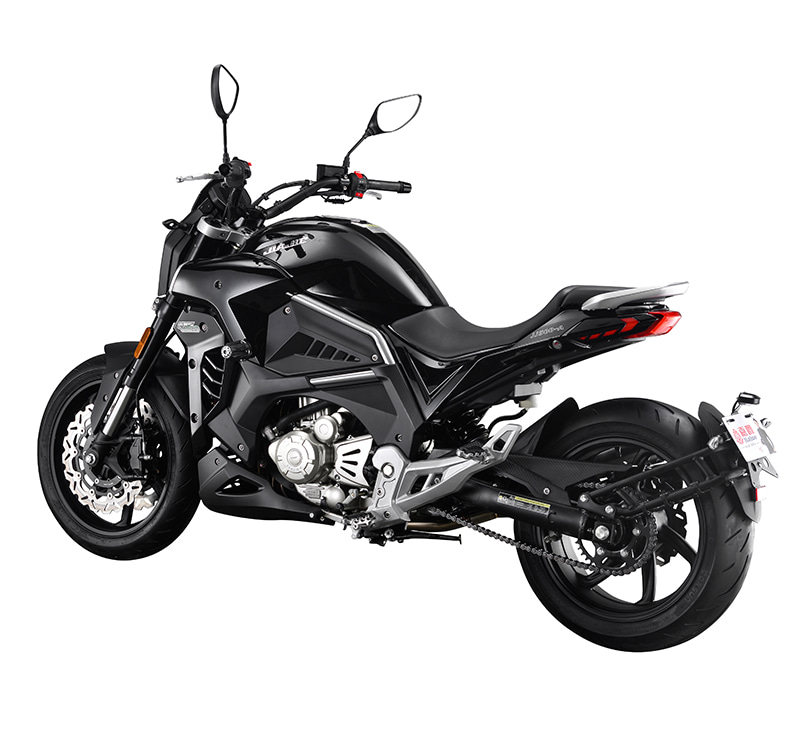

Navigator 500
5+
Views: 570
Detail image:
Specifications
Classification Comfigurations Parameter
Basis Parameter Model Name  Navigator 500S
Brand  Jiajue
Quotations US$2,650
Model Oriation Sport Cruiser
Engine Mode Horizone Cylinder、Four Stroke、Water Cooled、OHC、Four Vavle
Max Power(kw) 28/8500
Max Torque(N.m) 34/6000
Seat Height(mm) 760
Engine Parameter Displacement(mL) 494ML
Engine Bore(mm) 70*64.2
Fuel Supply Delphi EFI
Ratio  11:1
100KM Accerations 6S
Max Speed(km/h) 160
Tank Capacity(L) >20
Average Oil Consumption(L/100km) 4.3
MIleage(km) 500
Emmsion stardard
Fuel type 95#
Power Input  Transmission Mode Normally Toothed Two-Stage Transmission with six Gear
Cluth Type Wet Multi-disc Clutch
Transmission Mode Chain
Model Parameter LengthxWidethxHeigth(mm) 2225*875*1150
N.W(kg) 190
G.W(kg) 214
Frame  Steel Tube Cradle Frame
Rear Arm Press Sheel Metal One piece
Wheel Base(mm) 1600
Clearance(mm) 120
Headlight  LED
Tail Light LED
Speedometer TFT Colors Board
Leaning Angle(°) 29.1
Drag Form(mm) 116
Minimum Turning(m) 200
Max load(kg) 150
Optional Colors Gradient Red,Gradient Green,Mat Black,Suzuki Red
Rim Parameter Front Rim 120/70ZR17 M/C58W
Rear Rim 180/55ZR17 M/C73W
Rim Type Amilumilum Alloy
Tyre  Semi-hot melt Vaccum Tire
Front Brake Mode Φ320mm Floating Double Disc Pare with four pistons
Rear Brake Mode  Φ240mm Mono Disk with single piston
Front suspentions  Φ42 Upside down Liquid Damping Shock Absorber
Rear Suspentions Middle Singe absorber
ABS Yes
